Why an EPA Zone Is Critical in Medical Device Manufacturing

In medical device manufacturing, precision is not just a goal; it is a life-sustaining requirement. While many focus on software validation and material biocompatibility, a silent and invisible threat—electrostatic discharge (ESD)—poses a catastrophic risk to device reliability and patient safety. Establishing an Electrostatic Protected Area (EPA) is often viewed through the narrow lens of component protection, but this perspective misses the bigger picture. An EPA is not merely a technical precaution; it is a fundamental business strategy and regulatory mandate for ensuring patient safety, mitigating catastrophic financial risk, and maintaining brand integrity.

Ignoring this threat has severe consequences, from latent device failures in the field to complete non-compliance with global health authorities. A truly effective quality system understands that managing ESD is a core pillar of risk management. Implementing the proper ESD protected area requirements moves beyond a simple checklist and becomes a strategic imperative that safeguards the entire value chain, from the production line to the patient’s bedside.

Navigating the Regulatory Maze: How ESD Control Satisfies FDA and ISO 13485 Mandates

For medical device manufacturers, regulatory compliance is the license to operate. A robust ESD control program is not an optional add-on but a direct enabler of compliance with key international standards. An EPA provides the documented, controlled environment necessary to satisfy the stringent demands of both ISO 13485 and the FDA’s Quality System Regulation (QSR). Failure to control environmental factors like static electricity can lead to process deviations that regulators view as a critical failure of the quality system, contributing to recalls. In fact, medical device recalls reached a four-year high in 2024 with 1,059 events, underscoring the intense scrutiny on manufacturing processes.

ISO 13485 places a heavy emphasis on risk management and the preservation of product integrity throughout the production cycle. An EPA directly addresses these clauses by ensuring that sensitive electronic components are handled in a controlled environment, preventing damage that could compromise device performance. This commitment to a rigorous quality management system is what separates market leaders from laggards, as it demonstrates a proactive approach to safety and reliability. Likewise, the FDA’s 21 CFR Part 820 mandates process validation to ensure product quality, and an EPA provides tangible, auditable proof that a critical variable—electrostatic discharge—is under control.

The table below clarifies how ESD control aligns with the requirements of major regulatory frameworks, shifting its perception from a technical task to a core compliance activity.

To systematically achieve compliance, manufacturers must integrate ESD controls into their quality management system from the ground up. The following checklist outlines the essential steps for aligning EPA implementation with FDA 21 CFR Part 820.

The True Cost of Static: Quantifying the Business Impact Beyond Component Failure

While a zapped component is a visible cost, the true financial and clinical impact of an uncontrolled ESD event is far greater and often hidden. The conversation must shift from the cost of a single failed circuit to the catastrophic consequences of a medical device malfunctioning during a critical procedure. A latent ESD defect can lead to inaccurate readings from a diagnostic tool, the failure of life-support equipment, or intermittent errors that erode clinical confidence, all with direct implications for patient outcomes.

These failures trigger a cascade of devastating business costs. The Cost of Poor Quality (CoPQ) is a framework used to quantify these impacts, which extend far beyond the factory floor. It includes warranty claims, expensive product recalls, litigation from adverse patient events, and irreversible damage to brand reputation. Industry-wide, these failures are not trivial; non-routine quality events cost the industry between $2.5 billion and $5 billion per year. An investment in a properly implemented EPA is, therefore, not an expense but a high-ROI strategic decision to protect revenue and ensure long-term business continuity.

The most dangerous outcome of ESD is not immediate failure but latent damage, which creates a ticking time bomb inside a medical device that may only manifest after it has reached the patient.

The consequences of ESD range from catastrophic failures that render the device inoperable immediately to insidious latent damage, which may go undetected initially only to manifest as intermittent malfunctions, reduced performance or premature failure during the product’s lifecycle. It is estimated that up to one-third of all printed circuit board (PCB) failures stem from this unseen phenomenon. In some critical medical devices, these failures can mean the difference between life and death.

– Clinical impact of latent ESD defects in medical devices, Medical Design and Outsourcing

Implementing a Defensible ESD Control Program: Core Tenets of ANSI/ESD S20.20 in a Medical Context

Simply designating an area as an EPA is insufficient. A defensible ESD control program must be built on the globally recognized ANSI/ESD S20.20 standard. This standard provides a comprehensive framework for designing, implementing, and maintaining an effective program. In a medical context, adherence to this standard is the only way to create an auditable and reliable system that can withstand regulatory scrutiny. It provides clear technical requirements for protecting increasingly sensitive electronics, covering devices with minimum sensitivities of 100V Human Body Model (HBM) and 200V CDM.

A compliant program is not a single solution but a tripartite system. It consists of an administrative plan (the “what and why”), a technical plan (the “how and where”), and a verification plan (the “proof”). This structure ensures that ESD control is not a one-time project but a living, breathing part of the organization’s quality culture. This is crucial for creating a sustainable system that adapts to new technologies and risks.

The visual below breaks down these three pillars, which form the foundation of any successful ANSI/ESD S20.20 implementation. Each pillar is codependent, and failure in one area compromises the entire system.

Beyond the physical setup, the human element is paramount. The standard emphasizes the need for documented, ongoing personnel training and certification. Every employee who enters the EPA must understand not just the procedures but the critical reasons behind them. This fosters a culture of accountability where ESD safety is everyone’s responsibility. Finally, the verification and audit process closes the loop, providing objective evidence that the EPA remains effective over time and that all technical elements are performing to specification.

Future-Proofing Reliability: ESD Challenges in the Age of Medical IoT and Miniaturization

The landscape of medical technology is evolving at an unprecedented pace. The rise of the Internet of Medical Things (IoMT), wearable sensors, and increasing component miniaturization presents new and formidable challenges for ESD control. As components like Micro-Electro-Mechanical Systems (MEMS) and Systems-on-a-Chip (SoC) become smaller and more complex, their inherent sensitivity to electrostatic discharge skyrockets. Traditional ESD precautions that were once sufficient are now proving inadequate for these next-generation devices.

This trend is particularly evident with the proliferation of PCBs in modern medical imaging and diagnostic tools, where density and complexity are constantly increasing. Research confirms that existing testing standards may not be sufficient for the unique risks posed by modern electronics, especially in wearable technology.

In recent years, numerous reports of device malfunction resulting in patient adverse events, and medical device recalls have been attributed to ESD. ESD measurements for realistic wearable medical device scenarios showed that the standard IEC 61000-4-2 test method is not sufficient, since the peak currents and maximum current derivatives of realistic discharges were up to 1.9 and 2.4 times larger than the standard specifications, respectively.

– Myles Kohani, Electrostatic Discharge (ESD) Risks in Wearable Medical Devices

This reality necessitates a forward-thinking approach to ESD strategy. Manufacturers must look beyond the assembly line and consider the entire product lifecycle. The risk of ESD damage doesn’t end when a device ships; it is a significant threat during field service, repair, and refurbishment, where technicians often operate in uncontrolled environments.

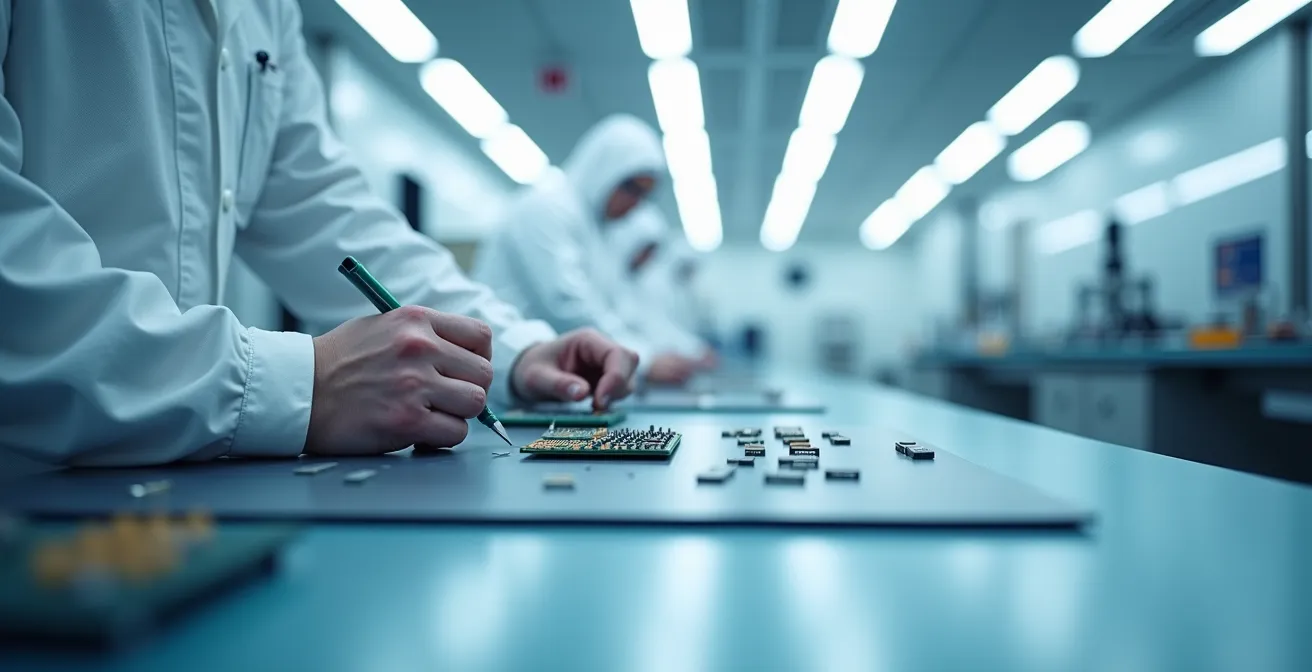

The image below captures the essence of a modern, high-tech cleanroom where miniaturized components for wearable devices are handled, highlighting the level of environmental control required to manufacture these sensitive electronics safely.

A comprehensive strategy must equip field service teams with portable ESD kits and provide rigorous training on managing static risks outside the factory. As devices become more integrated into our daily lives, designing for electrical robustness is as important as designing for functionality. The risk profile shifts at each stage, requiring different but equally critical control measures.

Ultimately, future-proofing medical device reliability requires a holistic and dynamic approach to ESD management. As technology continues to shrink and connect, the strategies to protect it must become smarter and more pervasive. For those looking to stay ahead of these trends, you can discover advances in PCB design that are shaping the future of patient monitoring equipment.
